Broadcom P1400GDF30 “L” & “A” LEDs Q&A

Broadcom P1400GDF30 “L” & “A” LEDs Q&A

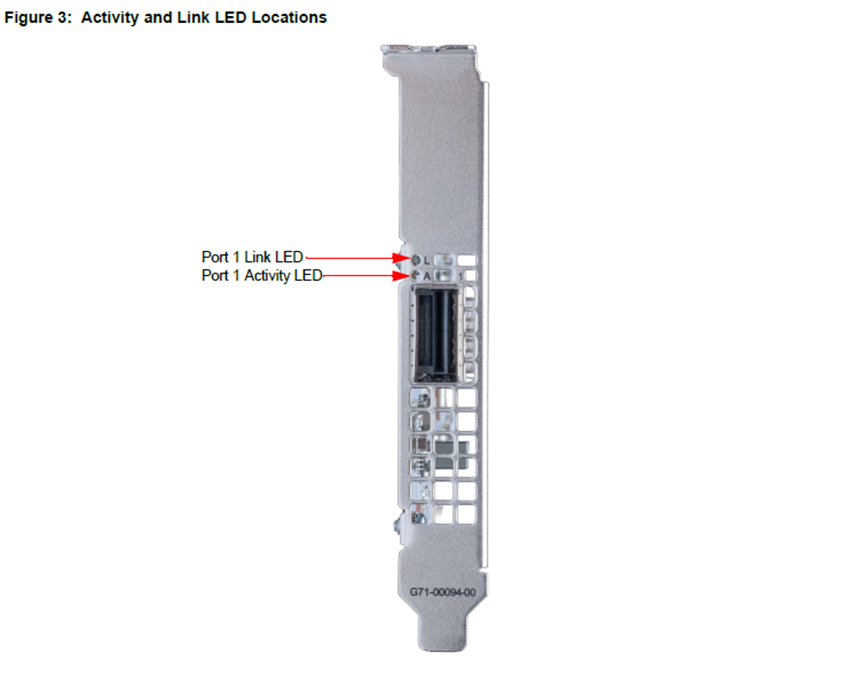

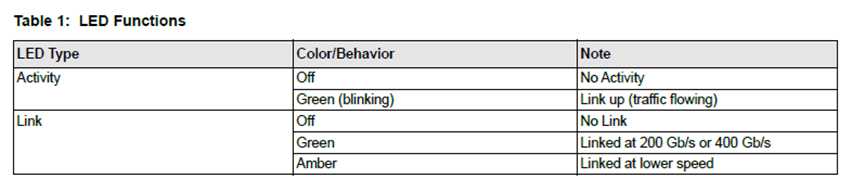

Q: What's mean “L” and “A” LEDs on the Broadcom P1400GDF30?

A: “L” means “Link LED”.

“A” means “Activity LED”.
