DDR5 Memory Population Rule Restriction on R1520G6/R2520G6.

R1520G6/R2520G6 supports DDR5 RDIMMs with the following feature:

• 8 channels DDR5, Up to 6400 MT/s (1DPC), 5200MT/s (2DPC)

This means If plug 6400MHz RDIMM on R1520G6/R2520G6, the memory speed can work on 5200 MT/s in 2DPC.

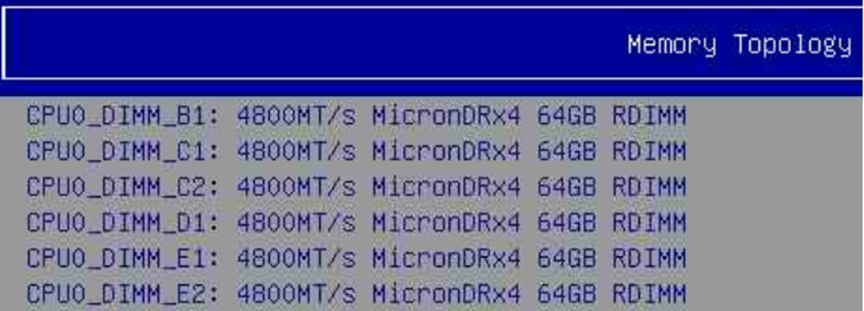

If plug lower than 6400MHz RDIMM, the speed will downgrade to 4800 MT/s.

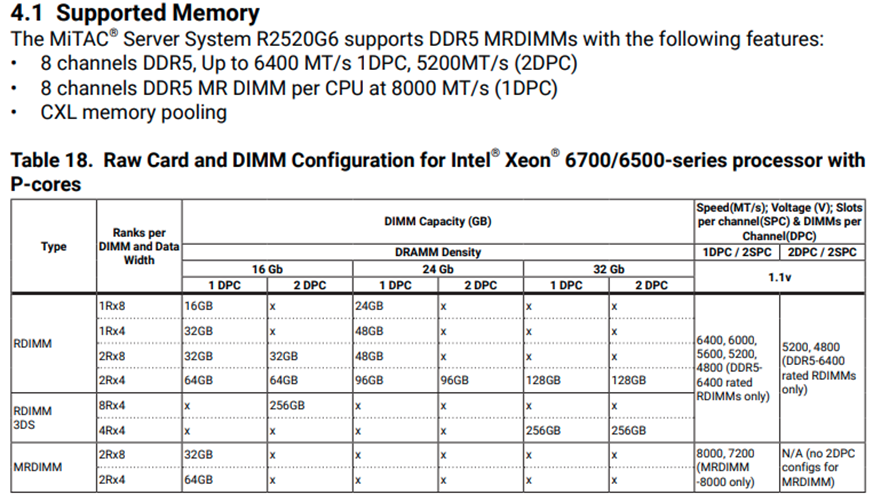

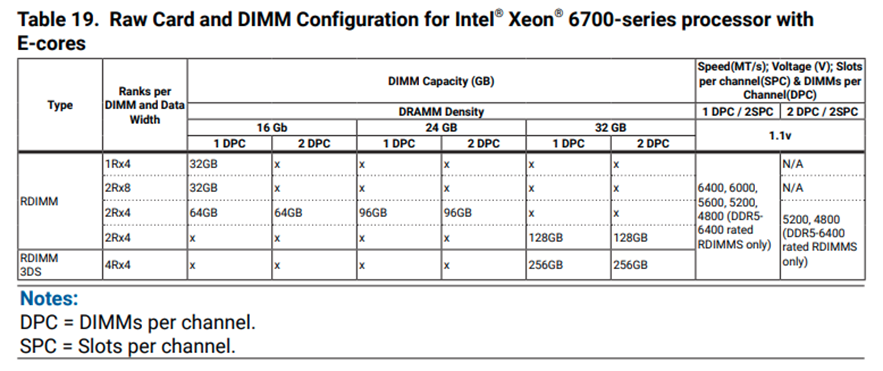

The following is the memory population table, which you can refer to set the appropriate memory configuration on page 94,95 of Technical Service Guide.

Please refer to the following link for the MiTAC website:

MiTAC G4520G6 G4520G6U2BC-N Documentations
