Fox Creek PASS do not support HBM CPU (9400 MAX CPU)
Attachment

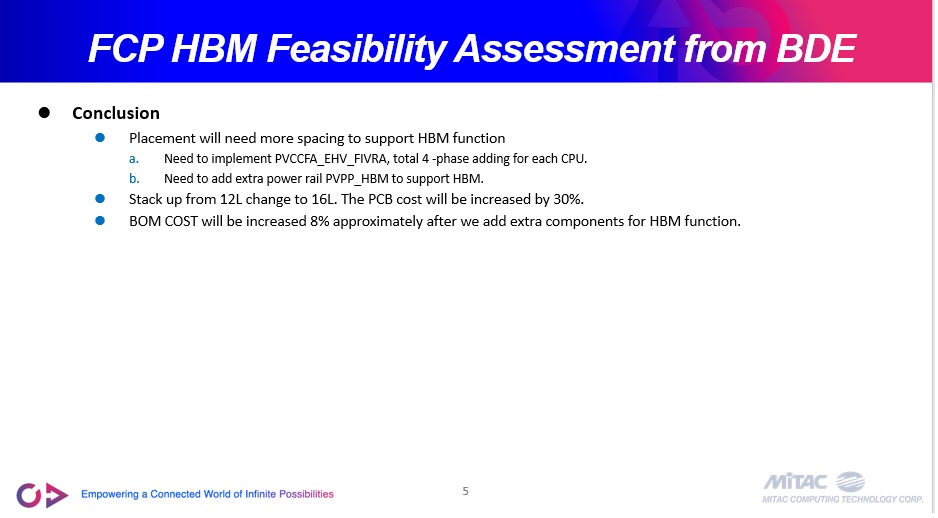

is our assessment at NPI stage, we and intel decided NOT to support since HBM
will request thicker baseboard and cause that existing CYP off shelf chassis
can not be leveraged.
