How to check CPLD and ROT version for R2520G6 & R1520G6
How to check CPLD and ROT version for R2520G6 & R1520G6

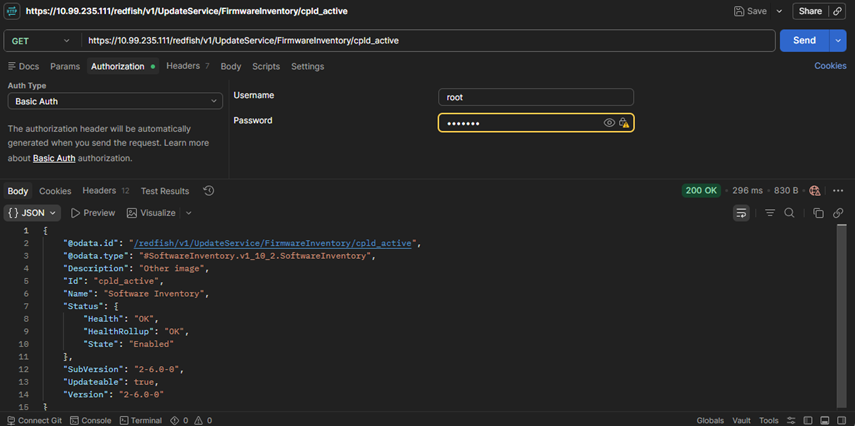

Redfish URL:
https://{BMC_IP}/redfish/v1/UpdateService/FirmwareInventory/cpld_active

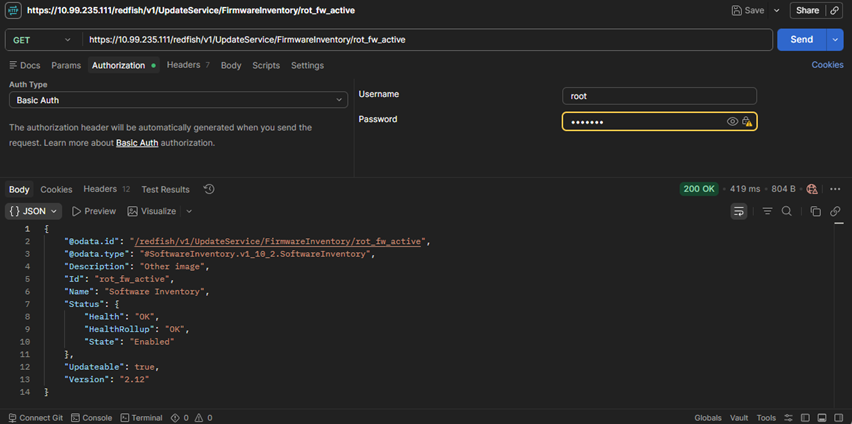

Redfish URL:
https://{BMC_IP}/redfish/v1/UpdateService/FirmwareInventory/rot_fw_active
