How to check the PSU Fan Speed/PSU Fan Duty/PSU Input Voltage/PSU Output Power?

How to check the PSU Fan Speed/PSU Fan Duty/PSU Input Voltage/PSU Output Power?

Question

How to check the PSU Fan Speed/PSU Fan Duty/PSU Input Voltage/PSU Output Power?

Answer

You can see the PSU fan run speed, duty, AC-in voltage, in the BMC sensor.

  1. Open a browser and log in to the BMC web console,
  2. Navigate to “Hardware status”-->”Sensors”,

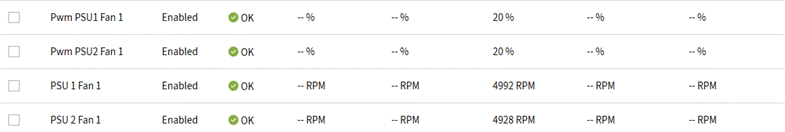

  3. You will see current PSU information such as input voltage, output power, PWM PSU fan, and PSU fan speed.

(‘--' indicates the data is unavailable.)
