How to identify whether B8056 can use Gen5 U.2 NVME SSD.
Question:
How
to identify whether B8056 can use Gen5 U.2 NVME SSD.
Answer:
User
wishes to use GEN5 U.2 NVME SSD must use B8056T70AE26HR-2T-2HE-TU product model
as its HDD backplane support GEN5 U.2 NVME SSD.
This
document explains how to identify B8056T70AE26HR-2T-2HE-TU system.
--------------------------------------------------------------------------------------------------------------------------------
HDD
Backplane, Re-timer Card and Cable P/N information as below:
|
Item# |
Item Description |
MiTAC P/N |
|
GEN5 HDD Backplane |
M1327T85-BPE-8 |
5411B0380023/411B03800142 |
|
Re-timer Card |
P2306-4E |
5411B0380003/411B03800020 |
|
Cable |
700mm Cable |
422B00300012 |
1. Check

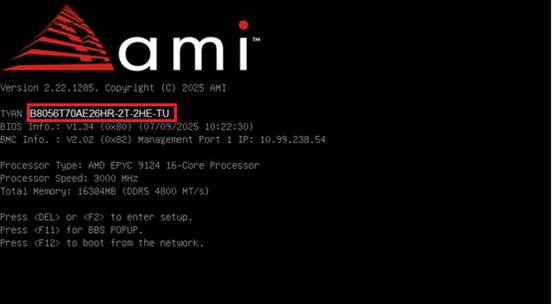

Banner information during BIOS POST as shown below.
2. Check

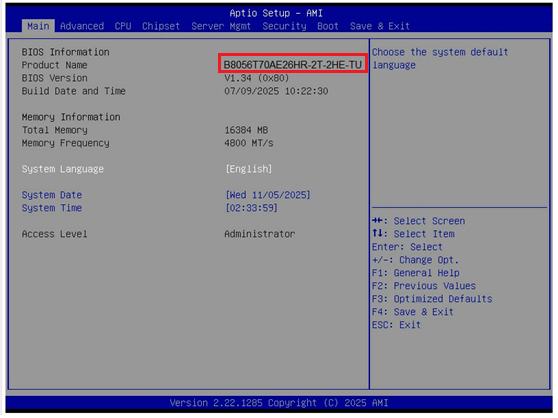

Product information on BIOS setup as shown below.
3. Check

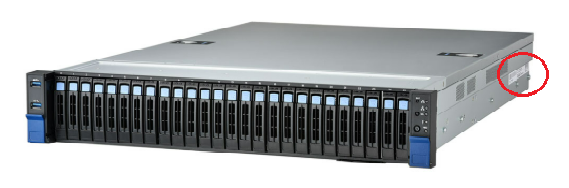

the Product Models Name on System Chassis in red circle
