How to install IO Rail for OCP Card on B8056?
Question
How to install IO Rail for OCP Card on B8056?
Answer
You may refer to section 2.1.9- installing IO Rail for OCP Card, page 54 of the
user guide.
Follow these instructions to install the IO
rail for OCP Card. Here is a sample
showing how to install the IO rail for the
dual-port LAN card E810-XXVDA2.

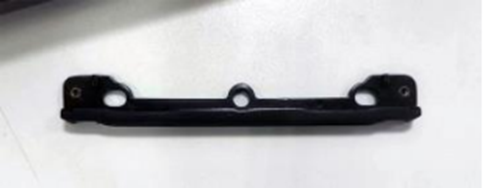

1. Take out the OCP rail assembly
from the AK box

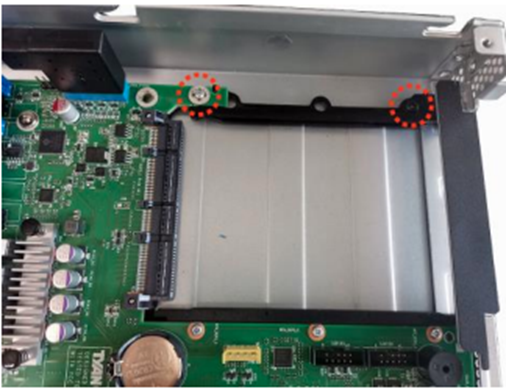

2. Secure the OCP rail assembly to
the motherboard.

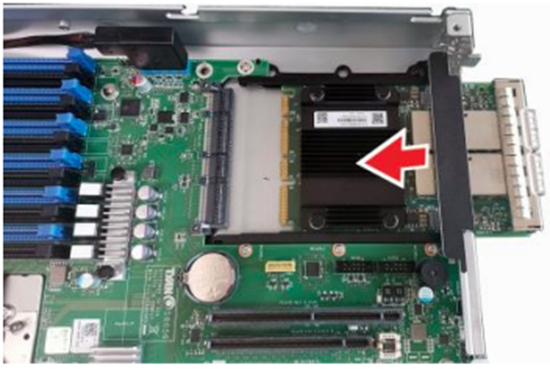

3. Insert the LAN card into the
OCP slot.

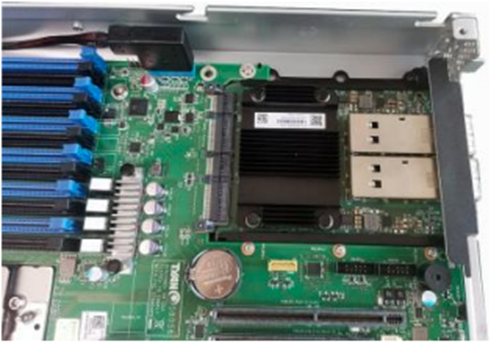

4.Push forward the OCP card all
the way to the end and secure the LAN card to the chassis with four screws.
