How to load Virtual media on a G4520 system “Load Image from Web Browser
"Please find the step-by-step Standard Operating Procedure (SOP) for loading an image.
see article attached.
G4520G6 Virtual Media – “Load Image from Web Browser”
G4520G6
CPU: Intel(R) Xeon(R) 6787P*2
DIMM: Samsung 96G*2 5600MHz
BIOS:v1.01
BMC:v1.02
OS image: ubuntu-24.04.2-desktop-amd64.iso
HDD: Micron MTFDKCC7T6TGP 7680G

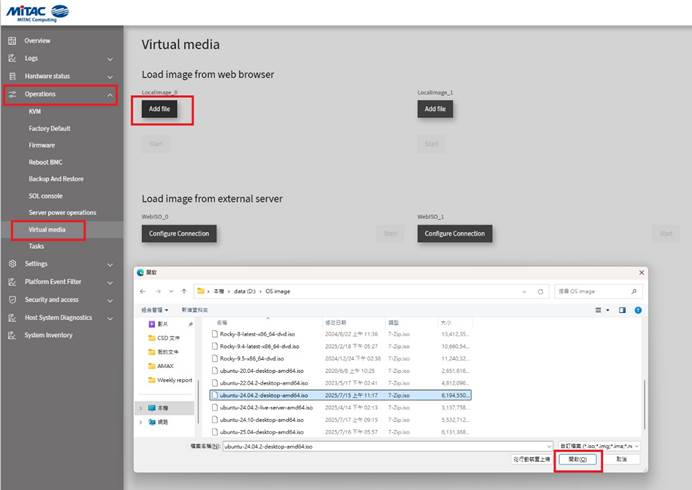

Step1. Load the ISO image on BMC web UI.

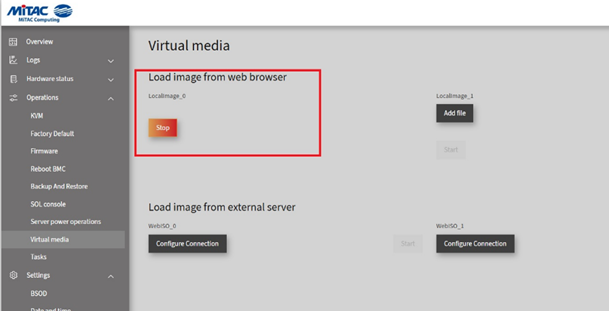

Step2. Load ISO image succeed

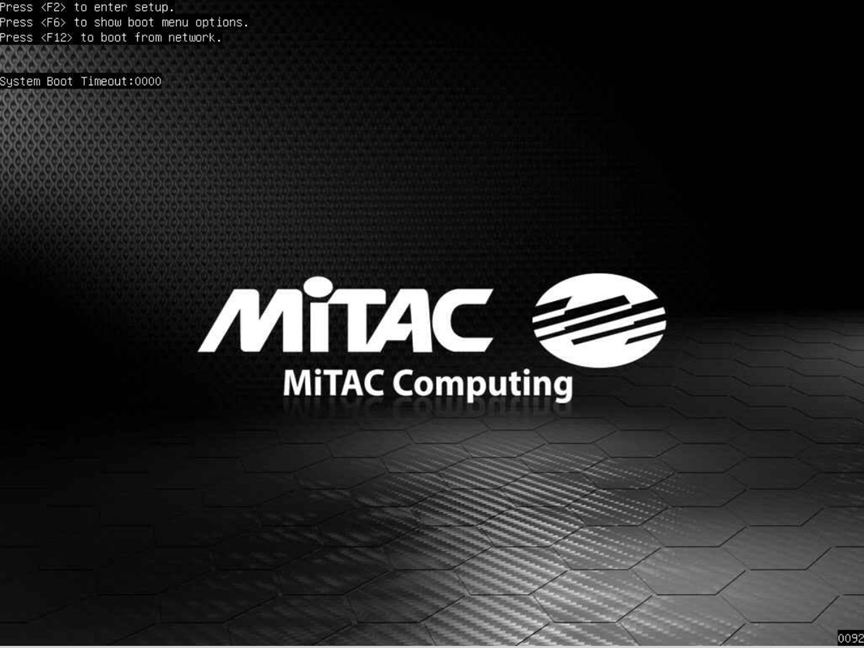

Step3. Press the “F6” on the Post Screen

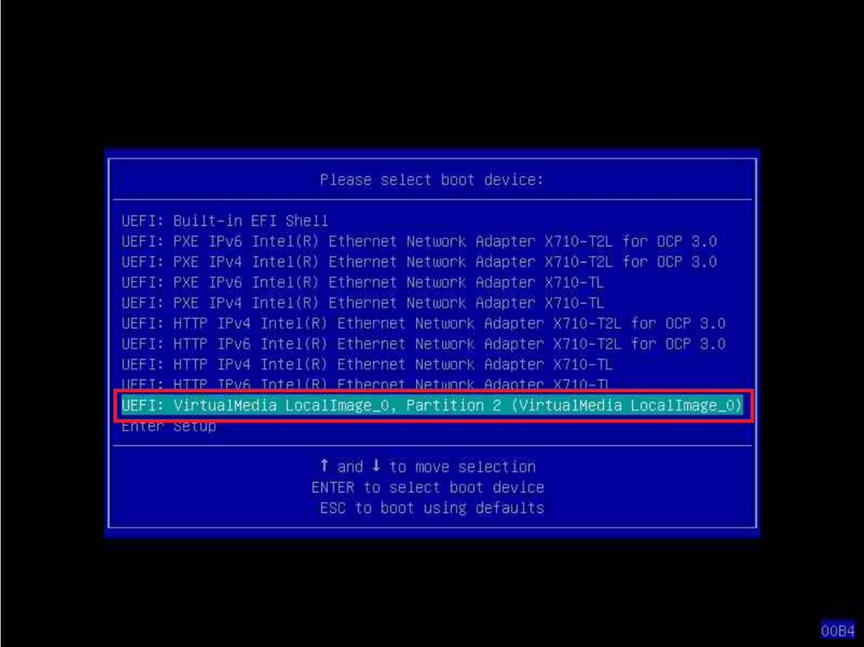

Step4. Select the VirtualMedia LocaImage_0

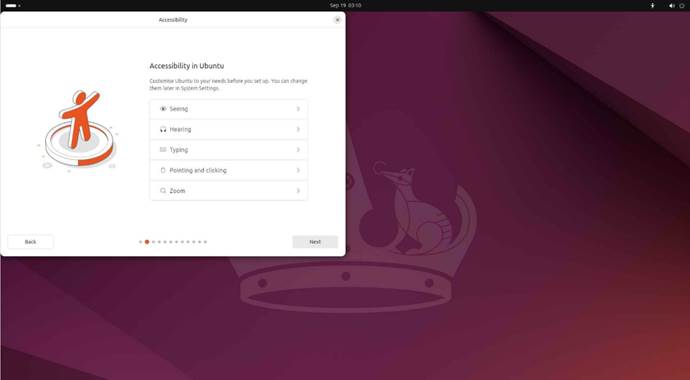

Step5. Begin OS installation.

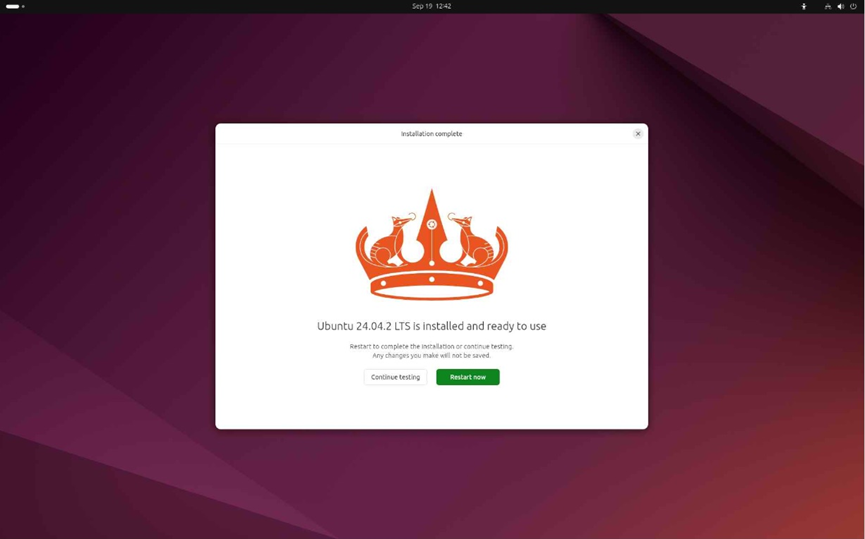

Step 6.Install OS complete.
