How to locate U.2 NVMe devices on GRAID SupremeRAID adapters?
Question:
How to locate U.2 NVMe devices on GRAID SupremeRAID
adapters?
Answer:
GRAID SupremeRAID adapters:
SR-1000: NVIDIA T1000 (PCIe 3.0 x16)
SR-1001: NVIDIA T400 (PCIe 3.0 x16)
SR-1010: NVIDIA RTX A2000 (PCIe 4.0 x16)
We can use GRAID graidctl command-line
management tool to locate Physical Drive (PD) on Linux or Windows system (the
same command is used for both Linux and Windows).
Locating a Physical Drive:
1.

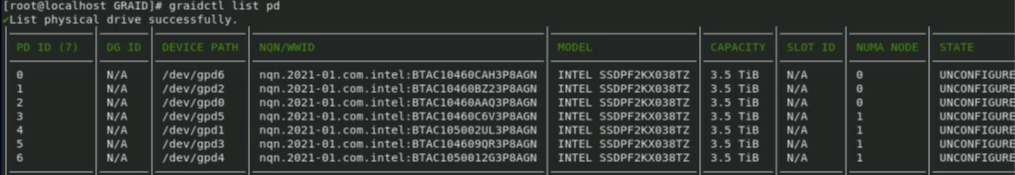

List all PD
#graidctl list pd
2.
Start locate pd 0 HDD
#graidctl edit pd 0 locating start
Check pd 0 HDD tray LED is red blinking at 1Hz.
3.

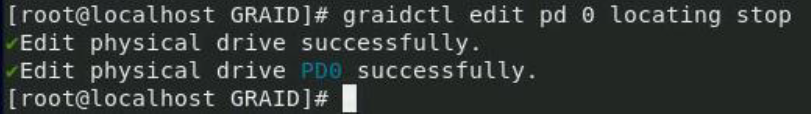

Stop locate pd 0 HDD
#graidctl edit pd 0 locating stop
