How to use ipmi command to set next boot as PXE boot

If customer needs to use ipmi command to set system next boot as PXE boot. Then customer can use below command to let their system boot to PXE mode at next power-on.

ipmi command:

#ipmitool chassis bootdev pxe (for Legacy mode)

#ipmitool chassis bootdev pxe options=efiboot (For UEFI mode)

Check current PXE mode

#ipmitool chassis bootparam get 5

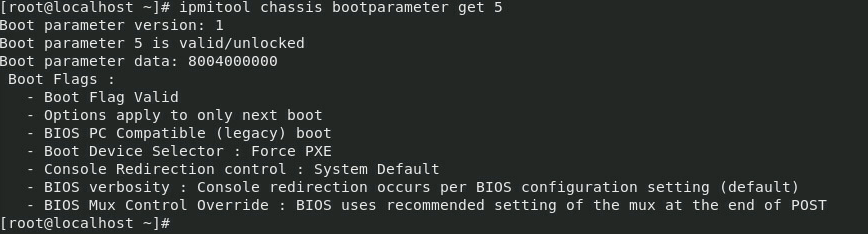

Legacy mode

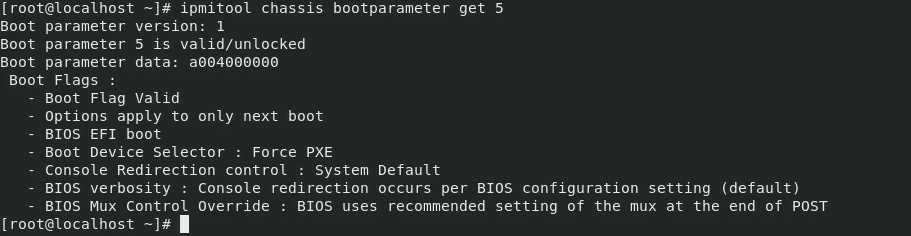

UEFI mode

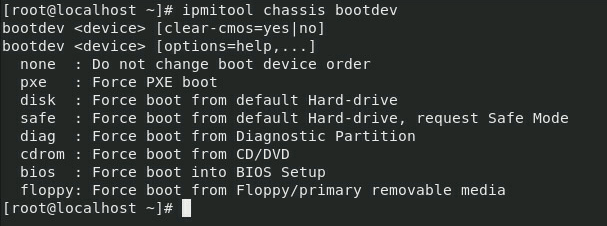

Bootdev:
