HOW TO USE REDFISH X-AUTH-TOKEN ON S5652 M/B VIA POSTMAN?

Question:

How to use X-AUTH-TOKEN on S5652 M/B via POSTMAN?

Answer:

Test Configuration:

1.  CPU:    Intel 4410Y

2.  RAM:   2 pcs Hynix HMCGM4MHBRB505N DDR5-6400MHz

3.  B/B :    FT65T-B5652

4.  BIOS:   v3.00 (0x30)

5.  BMC:   v7.00

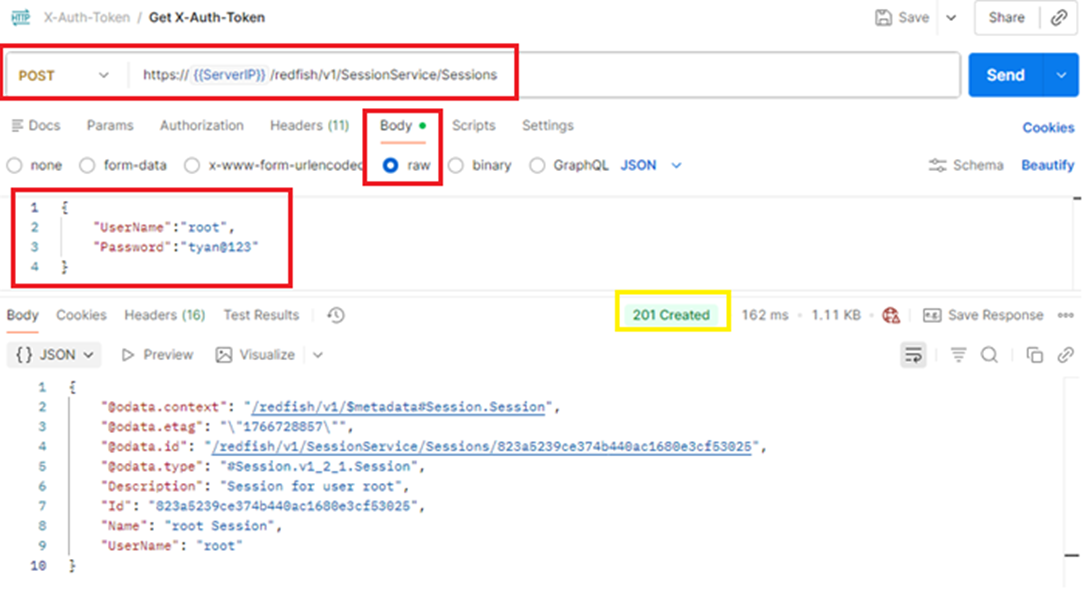

Step 1:   Issue POST https://<BMC IP>redfish/v1/SessionService/Sessions with UserName and Password as root/<YourPassword> with raw selected in the Body tab shown in red box below then click Send button.   Status code should be 201 Created in yellow box.

Step 2:   Click Headers tab then copy X-Auth-Token key in red box below

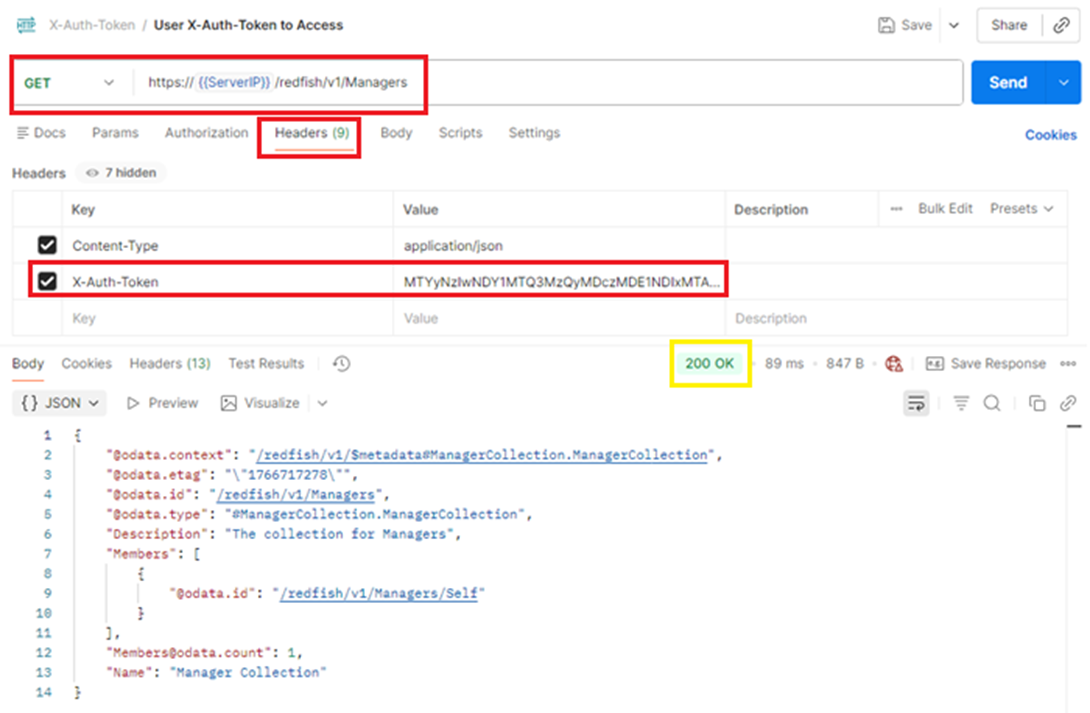

Step 3:  Issue GET https://<BMC IP>/redfish/v1/Managers and paste the X-Auth-Token key in the X-Auth-Token field in the Headers tab. Click Send button. Status code should be 200 OK.
