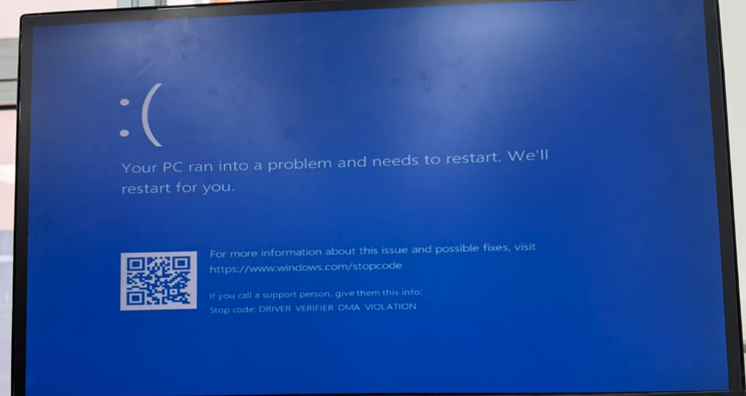

Install Windows 10 (IOT 2019 English version) blue screen for S5652
Install Windows 10 (IOT 2019 English
version) blue screen
Solution:
Disable "Intel VT for Directed
I/O (VT-d)
BIOS setting

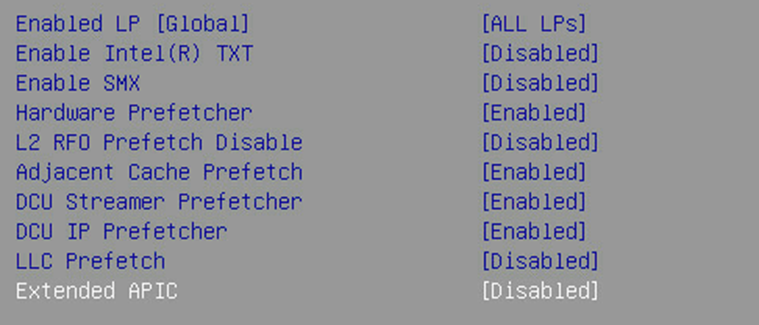

CPU -> Processor Configuration
-> Extended APIC from [Enabled] to [Disabled]

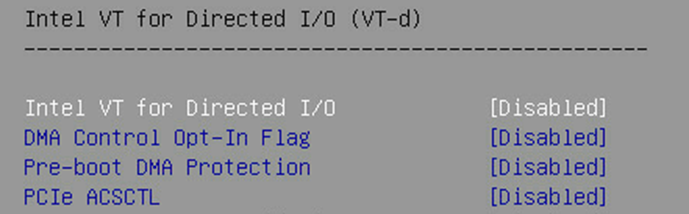

CPU -> IIO Configuration ->
Intel VT dor Directed I/O (VT-d) -> Intel VT for Directed I/O from [Enabled]
to [Disabled]
