Intel Server Board S2600WF (Cohesity) Storage Drive/Cable Reseat:
(1) Drive Reseat/Replace - The steps below can be performed while the server is running.
a. Identify the correct slot location depending on the chassis type
1U System


                                    Figure 1 R1208 - Drive Slot Number
b.
2U System

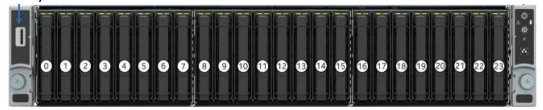

                                         Figure 2 R2224 - Drive Slot Number

c. Remove the drive (verify the serial number of the drive)
d. Replace or wait for 3 seconds and re-insert the drive e.
Verify if the drive is back online.
            • Cohesity - #list_all_disks.sh
(2) Cable Reseat
      a. Power OFF the system and remove the power cable
      b. Identify the correct slot location (see above)
      c. Reseat the cable
  1.  For 1U Cohesity config

                                Figure 3 R1208 Backplane Front View

                                Figure 4 R1208 Backplane Back View

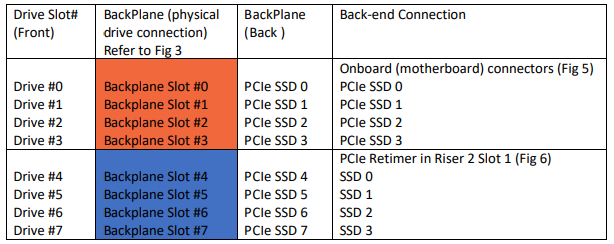

                                          Table 1 1U Drive Connection

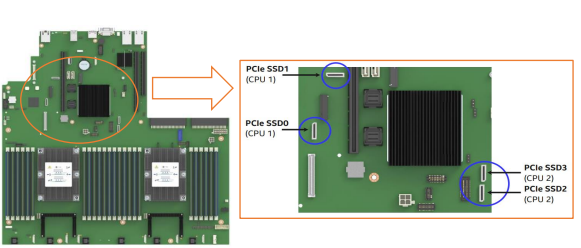

                                    Figure 5 Onboard OCulink Connectors

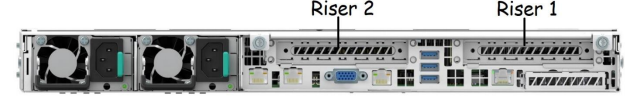

                                    Figure 6 PCIe Retimer A1U4PRTCXCXK

  1. For Cohesity 2U config

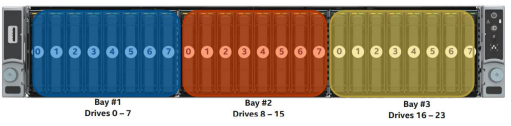

                       Figure 7 R2224WF Backplane and drive slot numbers

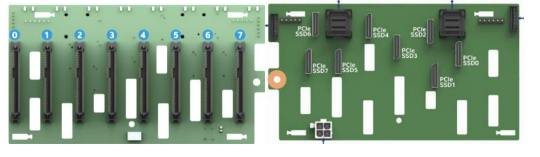

                  Figure 8 Backplane front (left) and back (right) view

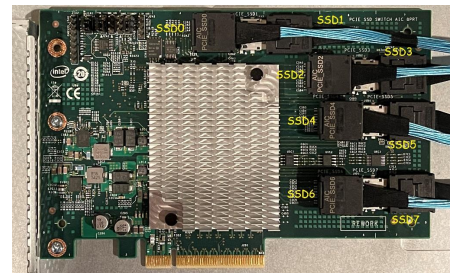

                        Figure 9 PCIe Switch 8 port AXXP3SWX080

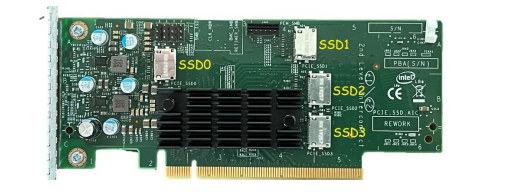

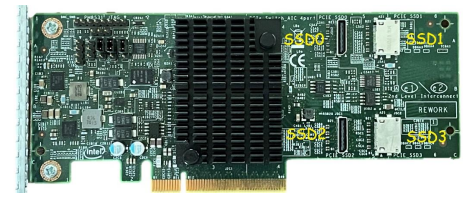

                   Figure 10 PCIe Switch 4 port AXXP3SWX08040

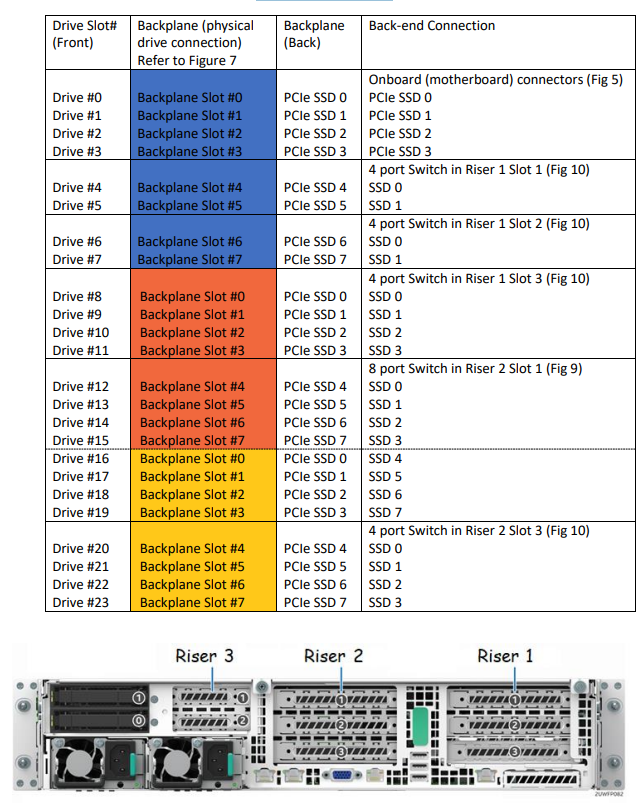

                                                           Table 2 2U Drive Connection
