Ipmi command for clear FCP ASM /VROC software key.

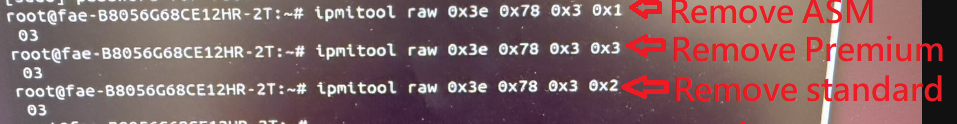

Please run below command in case you need to clear the SW key on FCP board.
Remove ASM Key: ipmitool raw 0x3e 0x78 0x3 0x1
Remove VROC Standard Key: ipmitool raw 0x3e 0x78 0x3 0x2
Remove VROC Premium Key: ipmitool raw 0x3e 0x78 0x3 0x3
