Issue with running FUP update with 24 OR 32 pcs RDIMM on R1520G6 and R2520G6
This
FUP FW package can update normally when using 2, 8, or 16 pcs RDIMM modules
configuration.
The update will fail with “BmcLibInitialize
returned failed” error messages during loading ipmi.efi driver when
the memory configuration is set to 24 or 32 pcs RDIMMs.

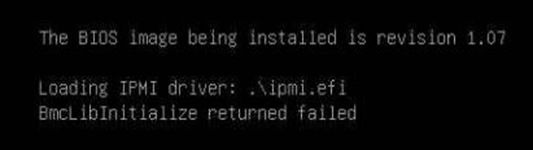

Below is the photo of
error messages shown when update fail. This can happen during BIOS, BMC, or CPLD
image update.

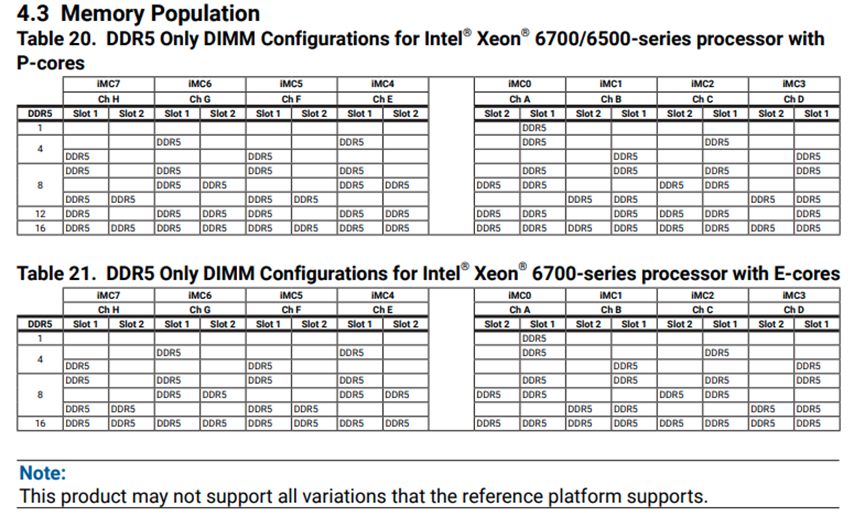

The
following is the memory population table, which you can refer to set the
appropriate memory configuration.
Note:
1. This firmware package
supports GNR-SP and SRF-SP CPUs.
2. After the update, please
load the BMC defaults and reboot the system, for some fixes will only take
effect after restoring the BMC default.
3. After update, please boot
the system to the OS because the BIOS version on the BMC Web only be updated
after POST ends.
4. Updating
the system version using the FUP takes approximately 50+ minutes.
Error messages with 24 or 32 pcs RDIMMs as
below:
