MiTAC OTS Front Panel Conversion Cable
MiTAC OTS Front Panel Conversion Cable
In
the S8040, S7130, S7136… motherboards, the onboard connector FPIO_2 (or FPIO_1,
as defined by the motherboard) is the front panel header. It is a 1.0mm 2x12 pin
header. In the chassis, the front panel header is a 2.54mm 2x12 pin header with
a cable. In this configuration, it requires a conversion cable that connects the
motherboard front panel header to the chassis front panel cable. If onboard
front panel header pitch is 2.54mm, there is no need this conversion cable. This
cable is option by your motherboard.
This
conversion cable information and connection method are as follows:
FP
CTRL CABLE, MiTAC P/N: 422B00700007
Conversion cable picture
Motherboard front panel header and cable connection pictures

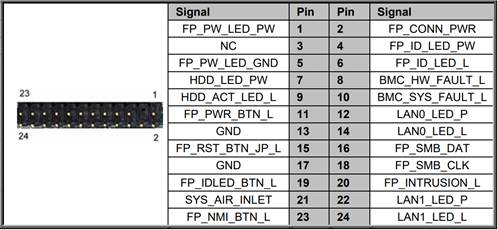

The pin definition of front panel header on the motherboard
of S8040…:
The pin definition of traditional mother board and chassis
front panel harder:

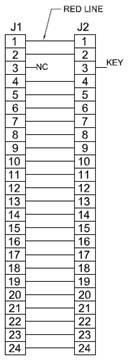

The conversion cable pin wiring definition
