Need to setup “Performance” mode in Bios setup menu when using H100/L40/L40s GPU card on M50FCP2UR208 and M50FCP2UR216.

If the end user installs H100/L40/L40s GPU card on M50FCP2UR208 and M50FCP2UR216,

the end user needs to install FCPGPGPU kit and manually switch fan profile to “Performance” mode in BIOS setup utility.

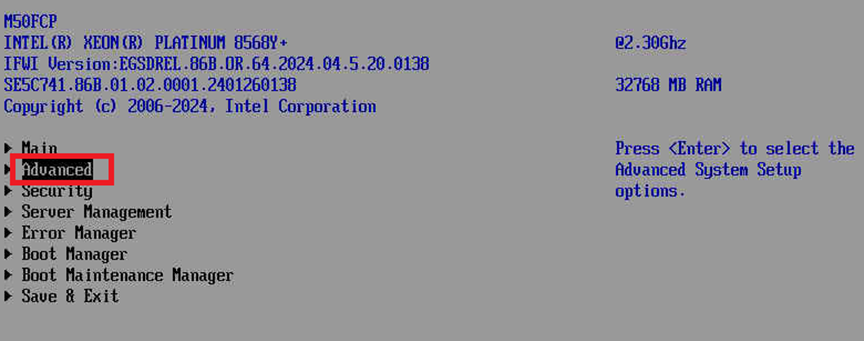

BIOS setup utility:

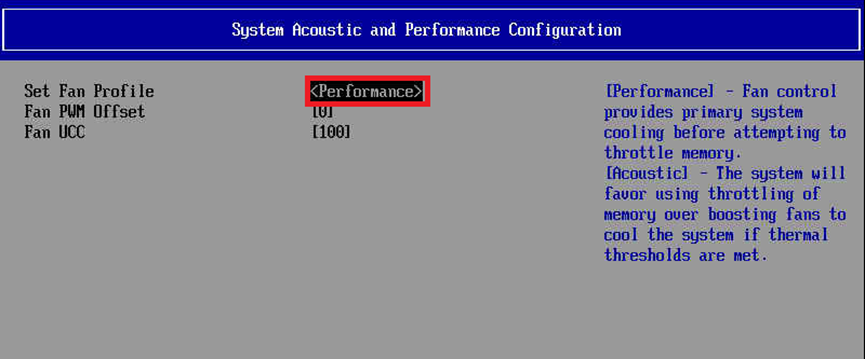

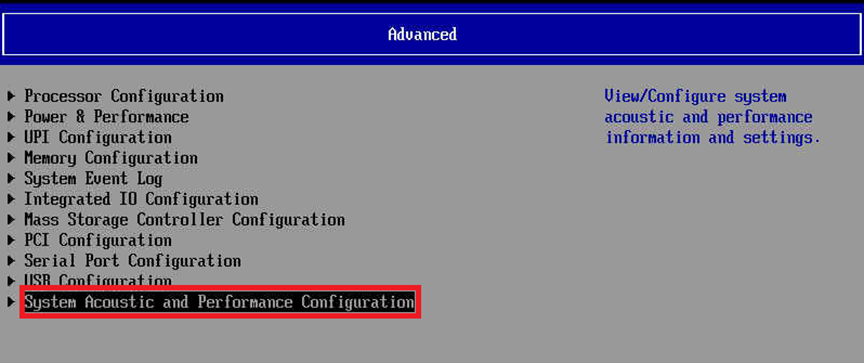

Advanced-->System Acoustic and Performance Configuration-->Set Fan Profile-->set to be [Performance] mode.

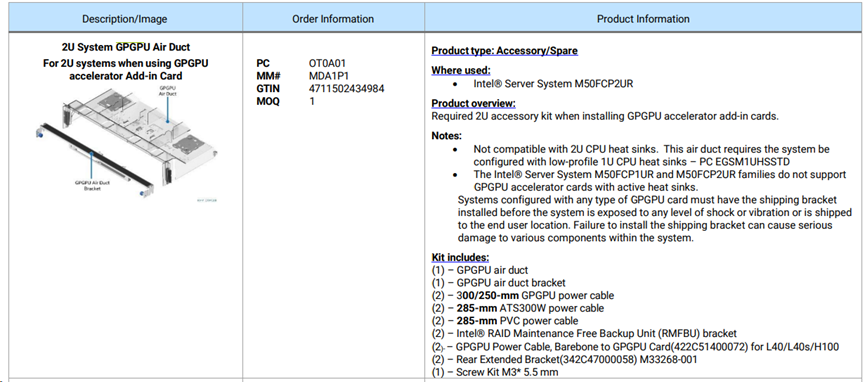

FCPGPGPU kit:
