PCIE Slot Location and Corresponding List for S8030
PCIE address and PCIE number Mapping
PCIE number PCIE address
PCIE Slot (J12) 41:00.0
PCIE Slot (J9) 01:00.0
PCIE Slot (J11) C1:00.0
PCIE Slot (J13) 81:00.0

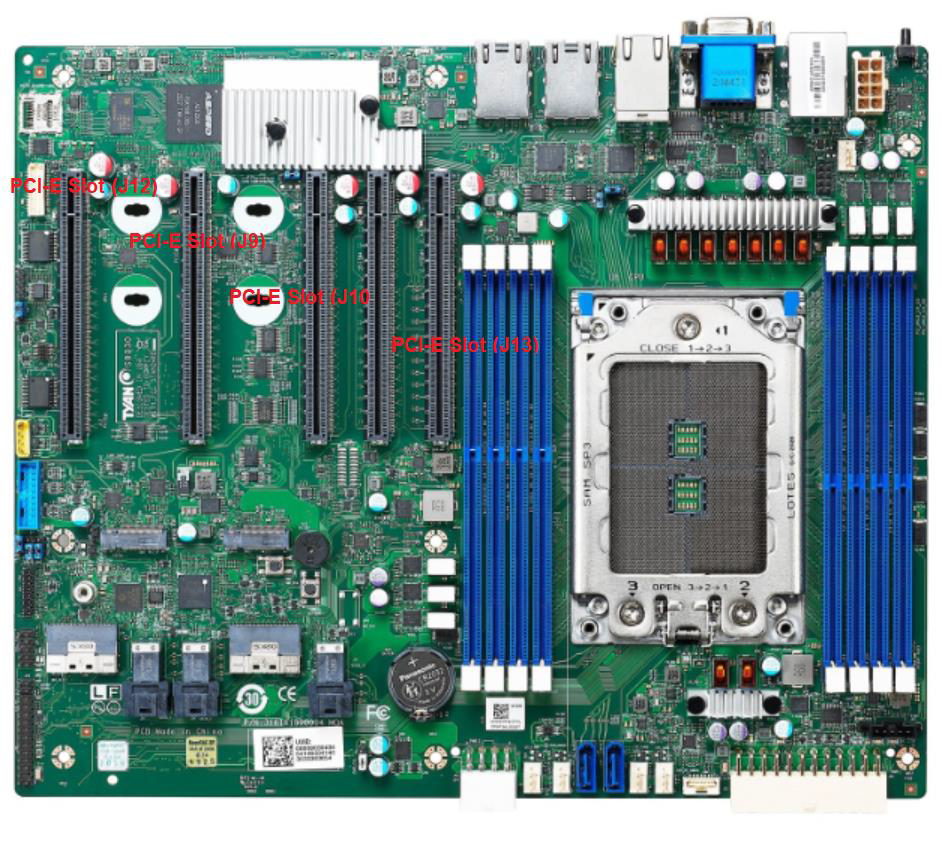

PCIE Slot Location
