Regarding the B8261T85E8HR-2T-N with one CPU installed, the server will not power on after the motherboard was replaced.

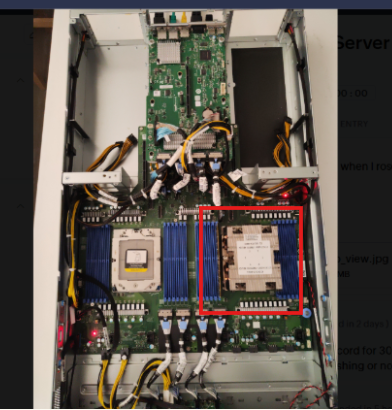

Regarding the B8261T85E8HR-2T-N with one CPU installed, the server will not power on after the motherboard was replaced. Below is the photo that shows the CPU is installed in socket 1 instead of socket 0.
Resolution:
The CPU needs to be installed in socket 0.
