What is the difference between B8261T85E8HR-2T-N-HE and B8261T85E8HR-2T N?
Question:
What is the difference between B8261T85E8HR-2T-N-HE and B8261T85E8HR-2T-N?
Answer:
Due to upgrade of two easy to swap 8038 rear Fans in the B8261T85E8HR-2T-N
HE, the system can support GPU modules with higher power
consumption (600W).
This enhancement also enables compatibility with a
broader range of GPU models, including the NVIDIA H200 NVL and RTX PRO 6000
GPU.

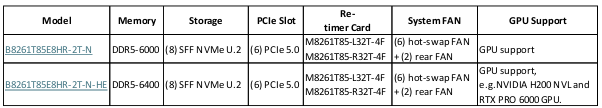

The following is brief description of the differences between B8261T85E8HR-2T
N and B8261T85E8HR-2T-N-HE.
