What power cable do I need to select to install an Nvidia H200 NVL in a MiTAC FT65T series system?
Question:
What power cable do I need to select to
install an Nvidia H200 NVL in a MiTAC FT65T series system?
Answer:
The MiTAC FT65T chassis can install up to
one Nvidia H200 NVL GPU card. Customers need to order one MiTAC P/N
422B00700009 to connect the Nvidia H200 NVL and connect three PCIe 8-pin power
cables to the motherboard.
Supported systems are listed in the table
below.
|
Nvidia H200 NVL / 141GB (600W) |
|
|
B5652F65TV6E2H-2T-N |
x1 |
|
B8050F65TV8E2H-N |
x1 |
|
B8050F65TV8E2H-2T-N |
x1 |
|

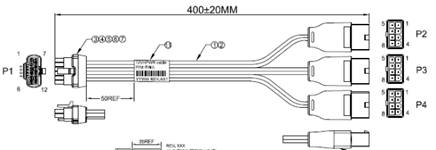

GPU Power Cable Part Number |
P/N:422B00700009 + 3x PCIe-PCIe 8pin cable |
|
|
|
Note: This cable also can be used in Nvidia
600W series GPU.
(ex. Nvidia RTX PRO 6000 Blackwell Server
Edition)
