Why D50DNP have no M.2 sensor show up when installed MICRON 5400
Fail symptom :BMC has no M.2 sensor show up , but M.2 device MICRON5400 (MTFDDAV480TGA) can be found in BMC storage Information menu

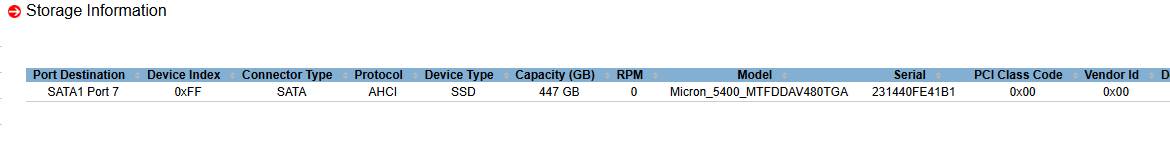

BMC storage information:
No M.2 sensor in sensor menu
Root cause:
Microm 5400 M.2 is SATA device which do not support NVME-MI
So BMC do not offer sensor reading for this device.
