Why M2810Z5D2E1XD E1.S NVMe Status LED (red) has no function?
Question:
Why M2810Z5D2E1XD E1.S NVMe Status LED (red) has no function?
Answer:

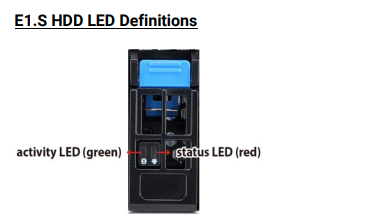

The M2810Z5D2E1XD E1.S NVMe “Status LED (red)” can only function
when the HDD backplane supports status LEDs.
In M2810Z5 serial systems, the E1.S NVMe drive is directly connected
to the motherboard and does not go through an HDD backplane. As a result,
status LED indication is not supported. This is a hardware design limitation of
the system.
