How can I determine whether the BMC on a Tyan server is corrupted?

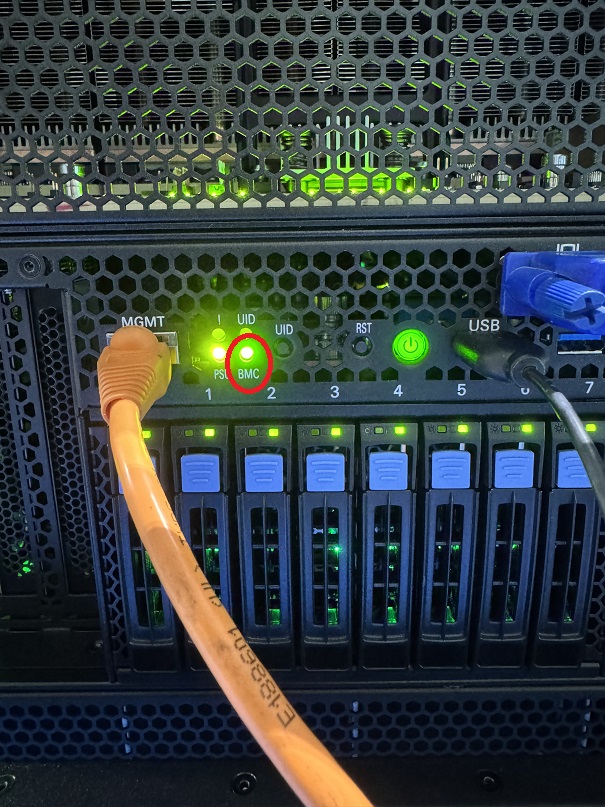

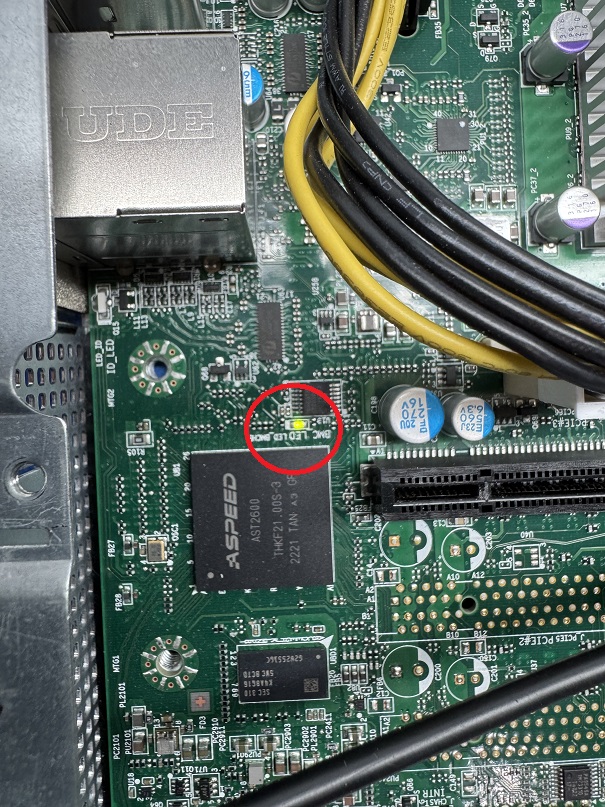

To check whether the BMC on our Tyan product line is functioning or corrupted, you can look at the BMC heartbeat LED on the motherboard or on the front panel board.
If the LED is blinking, the BMC is operating normally.
If the LED is solid green or off, it indicates that the BMC may be corrupted.

Please use the link below to open a support ticket with Mitac for assistance with recovering the BMC.

https://serviceticket.mitaccomputing.com/portal/en/home
