Q&A of FT65T-B8050

Q&A of FT65T-B8050

      1. Where to download the user manual?

      Ans: Please visit MiTAC website, or download here.

      2. CPU, Memory, SSD, HDD, OS support list, PCIe, TPM?

      Ans: please visit MitAC website, or download here.

      3. Where to download the software, BIOS, firmware?

      Ans: You can download the software

      4. Where to get the technical support?

      Ans: Please contact MiTAC technical support – Zoho ticket (Log in is required and register one time only)

      5. GPU support list?

      6. Where can I get the FRU, accessory part information

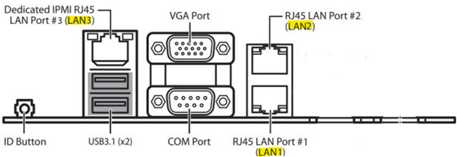

      7.   Front panel LAN1 LED, LAN2 LED, LAN3 LED mapping to which LAN port?

      Ans:       LAN1 LED: lower of dual lan ports

                  LAN2 LED: upper of dual lan ports

                  LAN3 LED: upper of USB+LAN combo connector

                  (You can see the FT65T-B8060 Tower Server Engineer's Manual, p152)

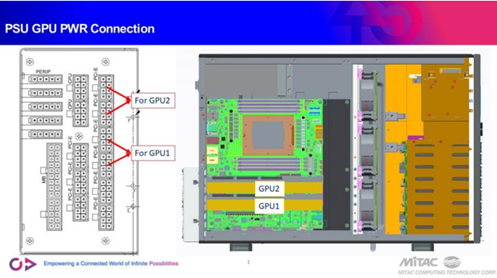

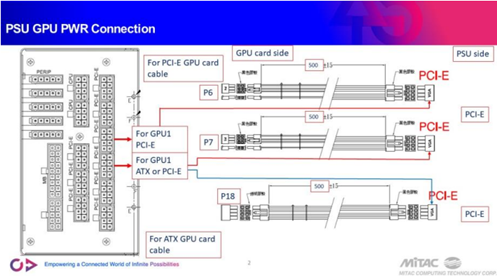

      8.  PSU GPU Power Connection

      Ans: You can see the section “Power supply Unit GPU PWR Connection” of FT65T-B8060 Tower Server Engineer's Manual, p120





      9. How to clear CMOS

      Ans: J75, you can see the FT65T-B8060 Tower Server Engineer's Manual, p137

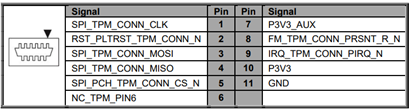

      10. TPM header location (Option part)

      Ans: J56, you can see the FT65T-B8060 Tower Server Engineer's Manual, p136

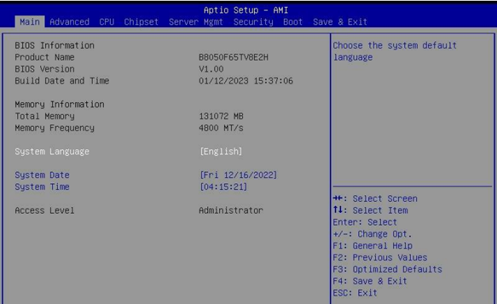

      11. How to check the BIOS firmware version?

      Ans: Boot into BIOS and you can see the BIOS version on the ‘Main’ page.
