How to adjust S8016AGM2NR system FAN speed?

How to adjust S8016AGM2NR system FAN speed?

Question:

How to adjust S8016AGM2NR system FAN speed?



Answer:

S8016AGM2NR System FAN speed can be adjusted by below ipmi command.



1.      ipmitool raw 0x2e 0x44 0xfd 0x19 0x00 0x00 0x01 50 (set PWM-0, duty-50, CPU_FAN)

2.       ipmitool raw 0x2e 0x44 0xfd 0x19 0x00 0x01 0x01 50 (set PWM-1, duty-50, SYS_FAN_1 )

3.      ipmitool raw 0x2e 0x44 0xfd 0x19 0x00 0x02 0x01 50 (set PWM-2, duty-50, SYS_FAN_2)

4.      ipmitool raw 0x2e 0x44 0xfd 0x19 0x00 0x03 0x01 50 (set PWM-3, duty-50, SYS_FAN_3)

5.      ipmitool raw 0x2e 0x44 0xfd 0x19 0x00 0x04 0x01 50 (set PWM-4, duty-50, SYS_FAN_4 )

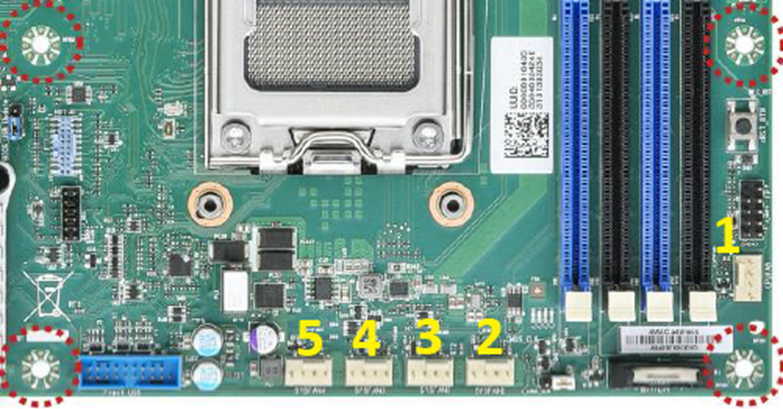

Fan Location:


FAN Header

1

CPU_FAN

2

SYS_FAN_1

3

SYS_FAN_2

4

SYS_FAN_3

5

SYS_FAN_4



Example:

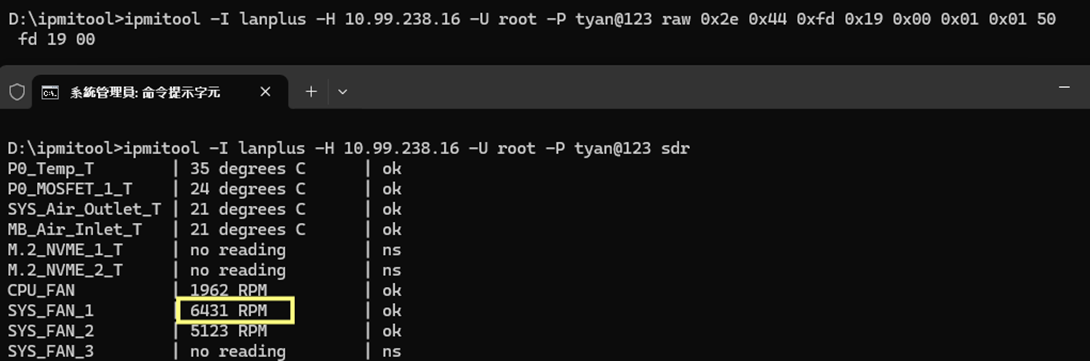

ipmitool raw 0x2e 0x44 0xfd 0x19 0x00 0x01 0x01 100



ipmitool raw 0x2e 0x44 0xfd 0x19 0x00 0x01 0x01 50



Note:
These value will restore to default value after system AC-cycle or BMC reset.
